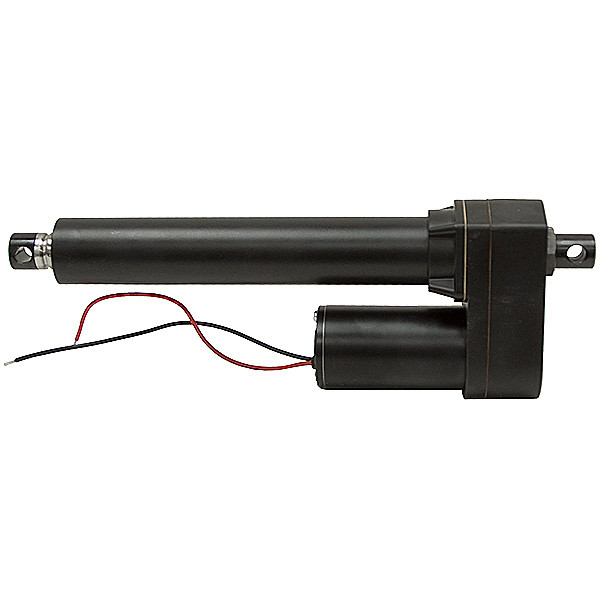

7.32" Stroke 1000 lbs 12 Volt DC Linear Actuator GlideForce LACT8-1000B

12 VOLT DC 1000 LB. LINEAR ACTUATOR
Brand new, GLIDEFORCE model LACT8-1000B heavy duty linear actuator. Ball screw drive with built-in overload clutch. Metal housing is water resistant and sealed against dust. Permanent magnet motor. (No limit switches or potentiometer)

SPECIFICATIONS

Stroke 186mm (7.32")
Voltage 12 DC
Push/Pull Rating
Dynamic 1000 lbs. max
Extension Speed
No Load 0.66 in/sec
Max Load 0.56 in/sec
Amps
No Load 2.4
Full Load 13.2
Gear Ratio 20:1
Duty 25%
Operational Temperature Range
-13° F to +149° F
Enclosure IP65
Pin Holes 1/2"
Retracted Length 16.06"
Shaft Dia. 1-1/8"
Size 17.08" x 3.04" x 5.97"
